Milliscope HD

Very High Resolution Small Diameter Fiberscope

  • A person is holding a milliscope in their hand

    Slide title

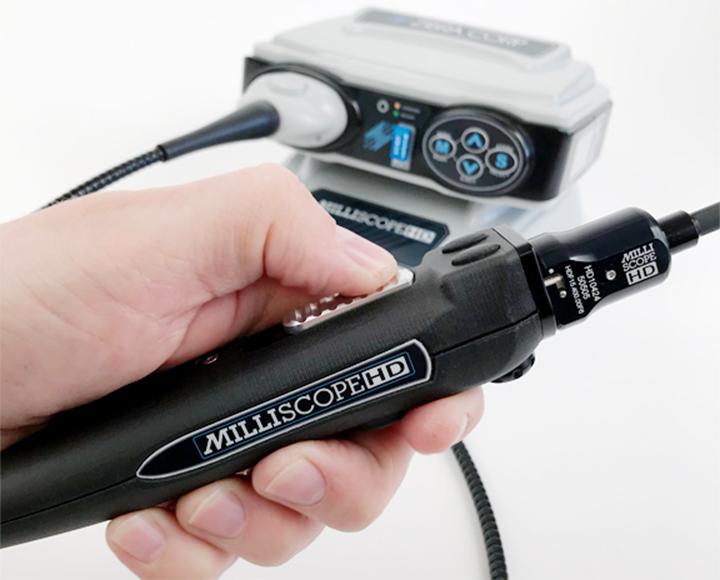

    Milliscope HD base unit w/ Fiberscope Camera Handle and HDF Semi-Rigid Fiberscope

    Button
  • A white and black device that says milliscope hd on it

    Slide title

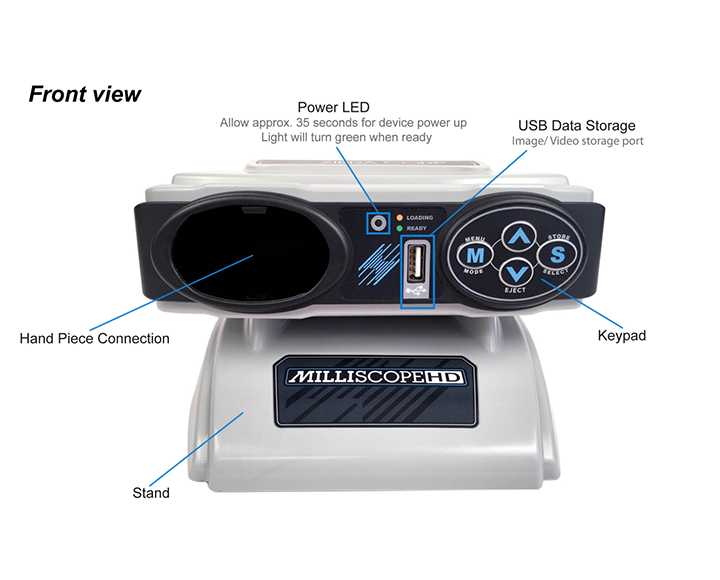

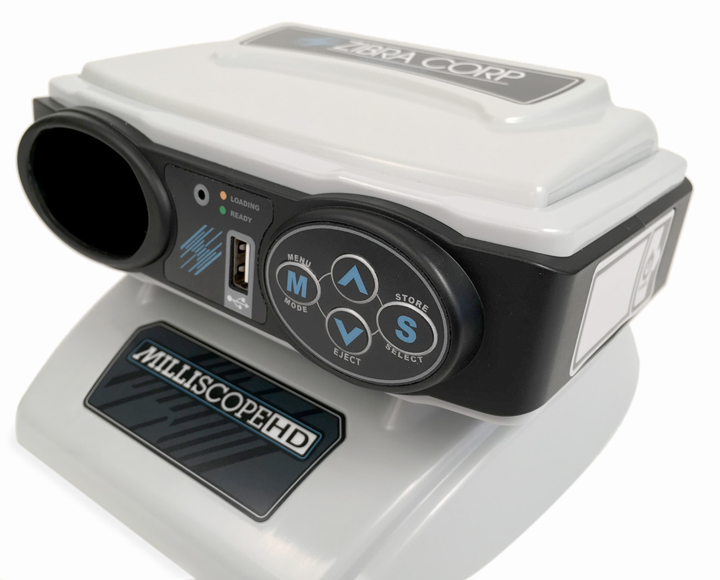

    Milliscope HD base unit

    Button
  • The back of a gray and black device that says ' maintenance only ' on it

    Slide title

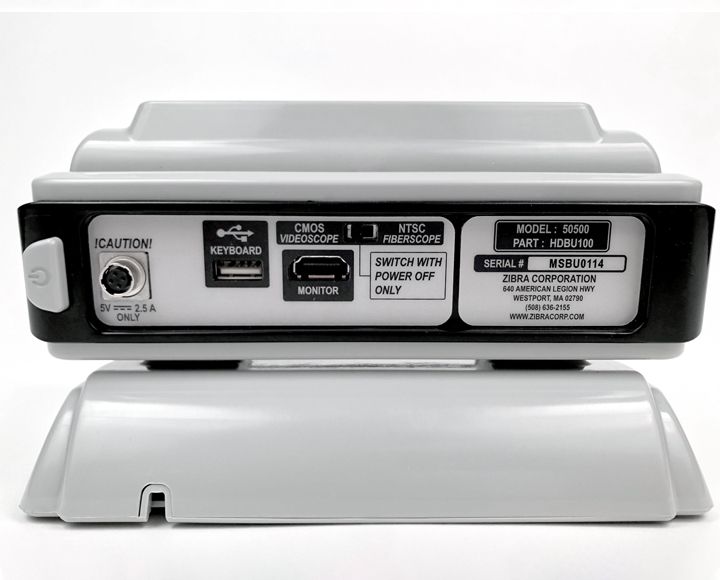

    Milliscope HD back panel w/ HDMI video output

    Button
  • A black cord with a small white device attached to it

    Slide title

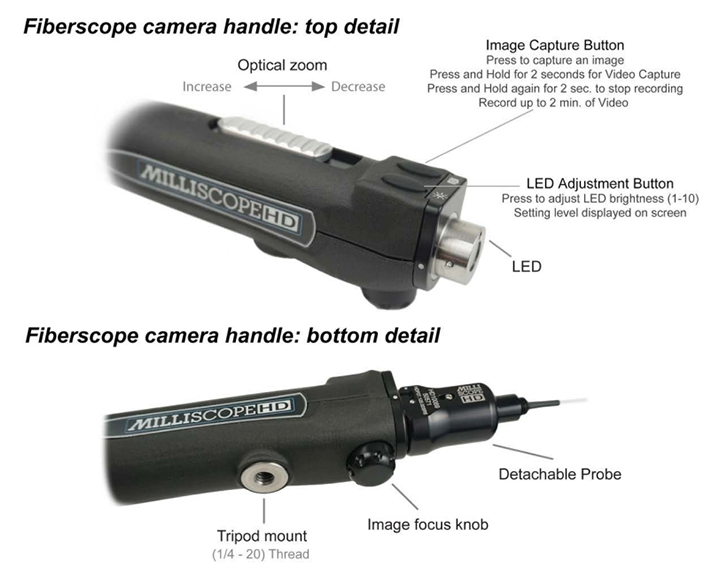

    Milliscope HDF Fiberscope Camera Handle

    Button
  • A row of black bottles with chinese characters on them are lined up on a white surface.

    Slide title

    Milliscope HDF fiberscopes in flexible and semi-rigid configurations

    Button
  • A computer screen with a zebra corp logo on it

    Slide title

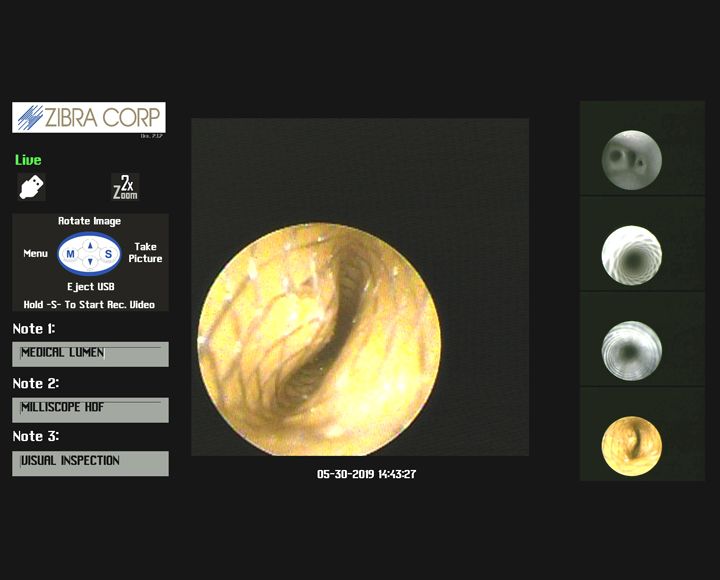

    Milliscope HD on-screen display

    Button
A black and white image of the word milliscope hd

Product Description

The Milliscope HD system provides users with a modular, versatile scope platform that delivers very high resolution, small diameter fiberscope and videoscope images via HDMI video output. The Milliscope HD base unit is the foundation of the system and provides a host of features which can be utilized by both the HDF fiberscope and HDV CMOS videoscope products. Scope image viewing, recording, image size adjustment, image focusing and LED lighting are all integrated into a single, easy to operate inspection system with no computer interface necessary.

Specifications

  • Uses easily removable & interchangeable Milliscope HDF fiberscopes
  • Scope Diameters: 0.35mm – 3.1mm ∅
  • Scope Shaft Lengths: 61mm – 10,000 mm+
  • View Directions: Ranging from 0° to 110° (product specific)
  • Fiberscope Camera Handle accepts all HDF flexible & semi-rigid scopes
  • w/ Integrated 3:1 optical zoom for ideal image view sizing
  • w/ Integrated, adjustable LED scope illumination system
  • w/ Integrated push button image & video recording to USB storage drive
  • Base Unit accepts Fiberscope Camera Handle & all HDV videoscopes
